Dental Device

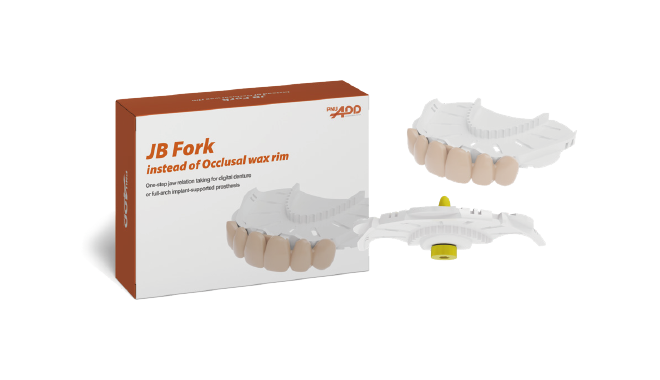

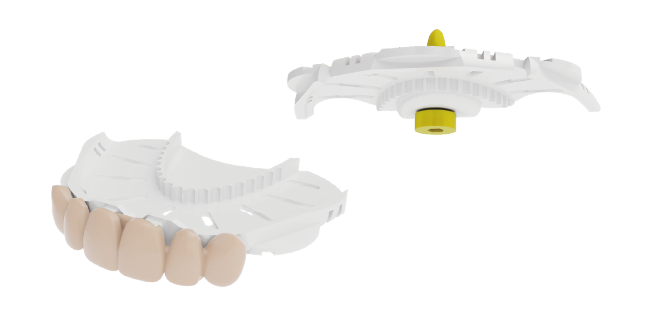

JB Fork Solution

Inter-maxillary relationship recording device that replaces occlusal wax rims in dentures or implant prosthesis.

One-Day Dental Jaw Relation Recording

On the day of the patient visit, impression and jaw relation is taken simultaneously along with digital denture design and fabrication Simplify traditional denture fabrication processes, thereby reducing the number of patient visits.

Digital/Analog Applicable Solution

Digital workflow for occlusal plane transfer Facial scan (optional) If a facial scanner is unavailable, the POP Bow system can be applied to capture the occlusal plane Applicable for conventional denture manufacturing Available for use to fabricate abutments and a temporary prosthesis for full mouth reconstruction with implants

Digital workflow

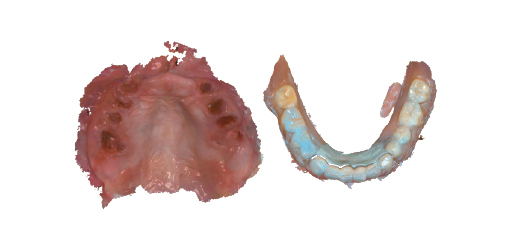

Intraoral scan

If an intraoral scanner is not available, traditional impression taking techniques are adequete
Apply JB Fork to maxilla with putty and VPS

Check for upper lip support and attach anterior teeth

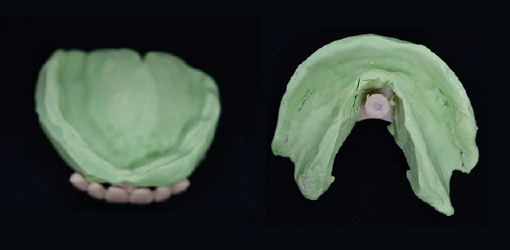

Apply JB Fork to mandible with putty and VPS

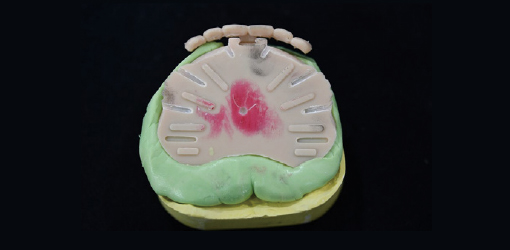

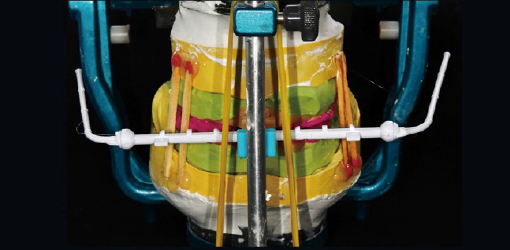

Gothic arch tracing

Decide proper vertical dimension and perform gothic arch tracing

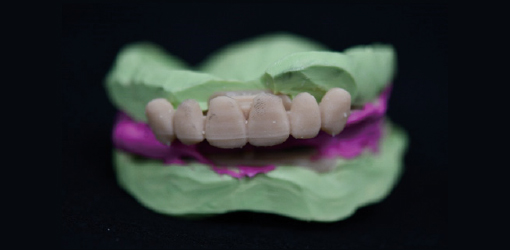

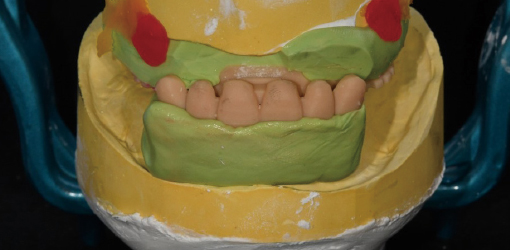

Bite taking

Apply VPS bite registration material between the upper and lower plates to fix the specified VD and CR

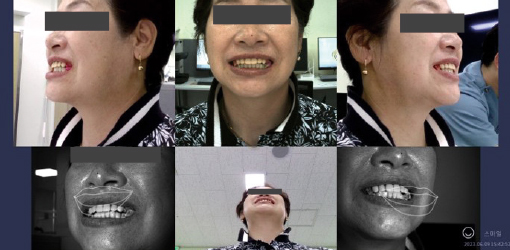

3D facial scan

Easily capture the occlusal plane
If a facial scanner is unavailable, record the occlusal plane with ADD POP BOW

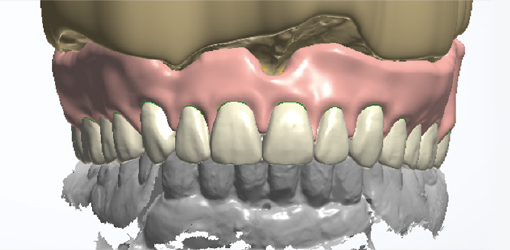

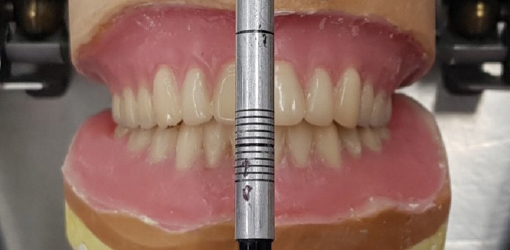

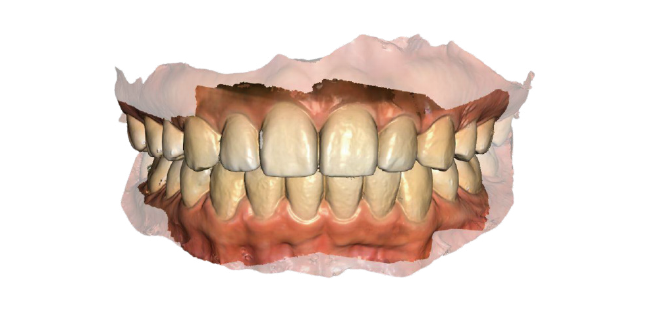

Digital denture production

Digital denture designed from existing dental CAD software (3Shape, exocad, etc.)
