Prosthetic Components

•

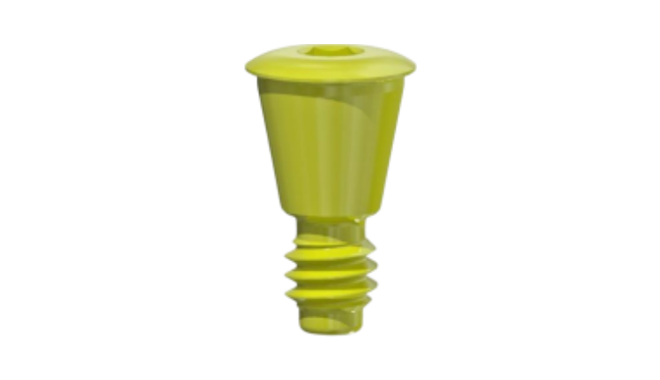

  Cover Screw

  Uses a 1.2 hex driver

  Torque : 5-8 N-cm

•

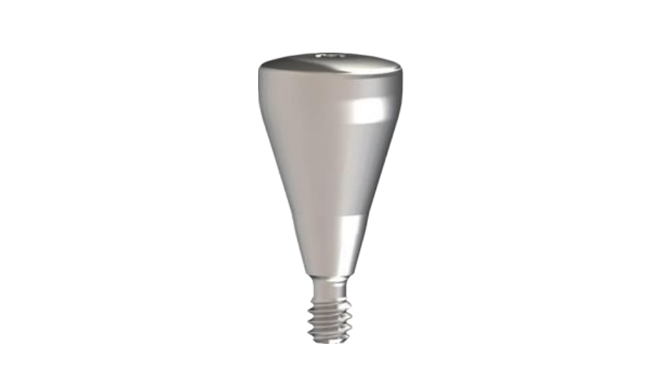

  Healing Abutment

  Uses a 1.2 hex driver

  Torque : Less than 10 N-cm

•

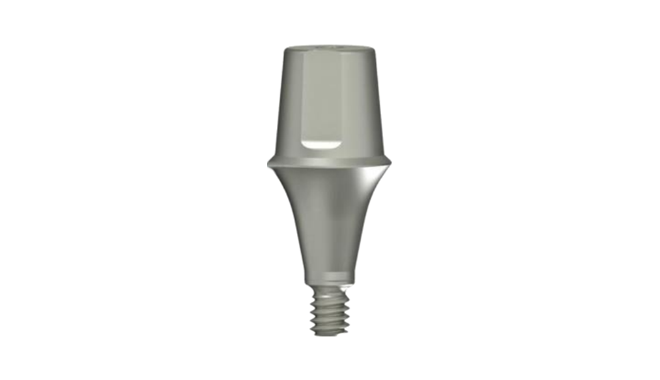

  One Piece Abutment

  Used for general cement-type prostheses (doesn’t include protection cap)

  Abutment Torque : Mini, Regular 30 N-cm

  All components used for the TS Rigid ABT can be used with the One Piece ABT

•

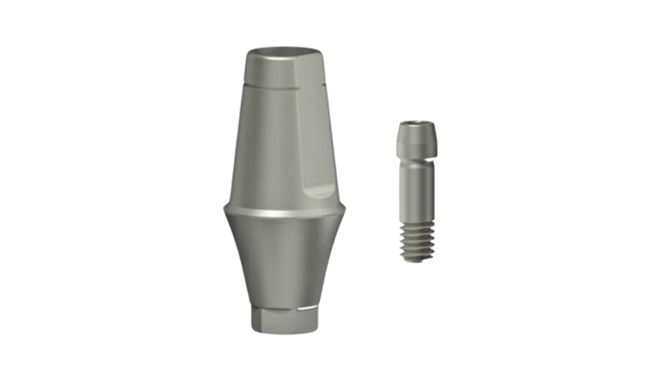

  Two Piece Abutment

  Used for general cement/combination type prostheses

  Abutment Torque : Mini 20 N-cm / Regular 30 N-cm

  Abutment screw uses a 1.2 hex driver

  Hex Connection with an anti-rotation structure

  All components used for the TS ABT can be used with the Two Piece ABT

•

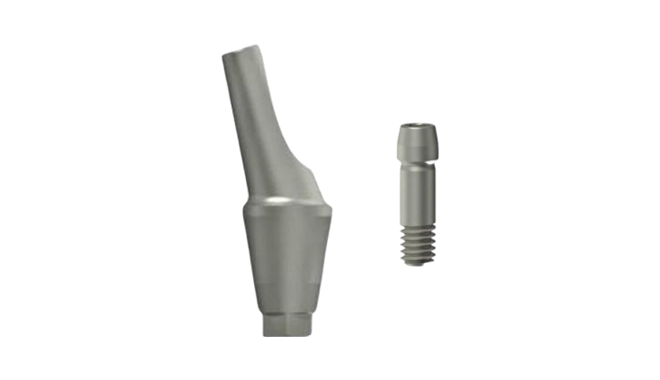

  Angled Abutment

  Used for general cement/combination type prostheses

  Abutment Torque : Mini 20 N-cm / Regular 30 N-cm

  Abutment screw uses a 1.2 hex driver

  17° angle

•

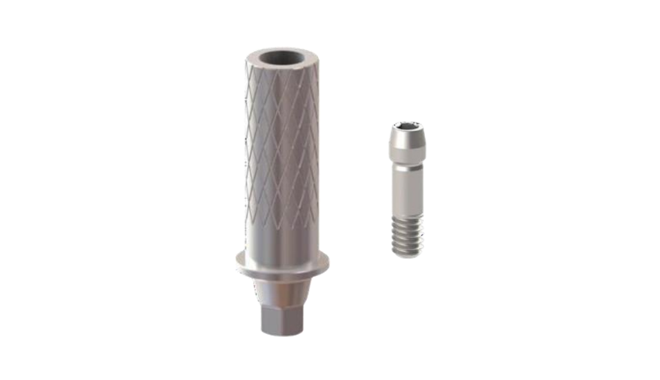

  Temporary Abutment

  Used for temporary prostheses

  Abutment Torque : Mini, Regular 20 N-cm

  Abutment screw uses a 1.2 hex driver

•

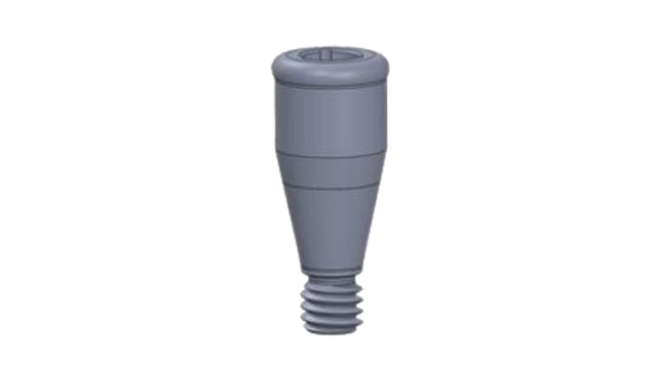

  Locator Abutment

  Used for overdenture prostheses

  Abutment Torque : Mini, Regular 30 N-cm

  Can accommodate up to 40° divergence between two implants

  Possible to use denture restorations even with small cervical dimensions

•

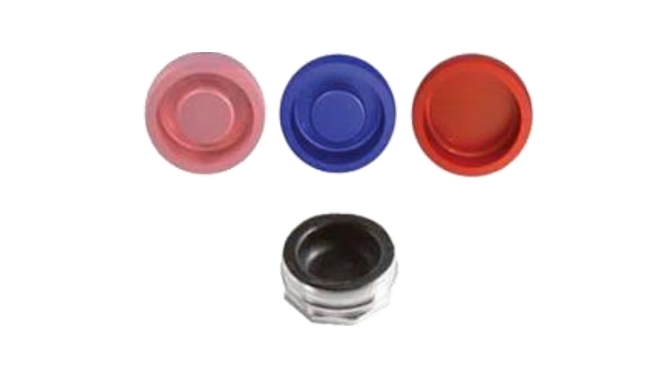

  KERATOR Male Cap (Set)

  Used for overdenture prostheses

  Components (1 each) : Pink (2.4 lbs), Blue (1.2 lbs), Red (0.5 lbs), Metal Housing

•

  Pick-up Impression Coping

  Impression capturing with a custom tray

  Components : Impression Coping body, pin screw

•

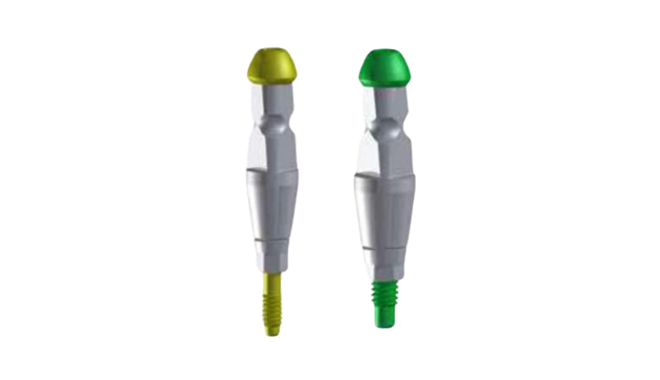

  Transfer Impression Coping

  Impression capturing with a closed tray

  Components : Impression Coping body, pin screw

•

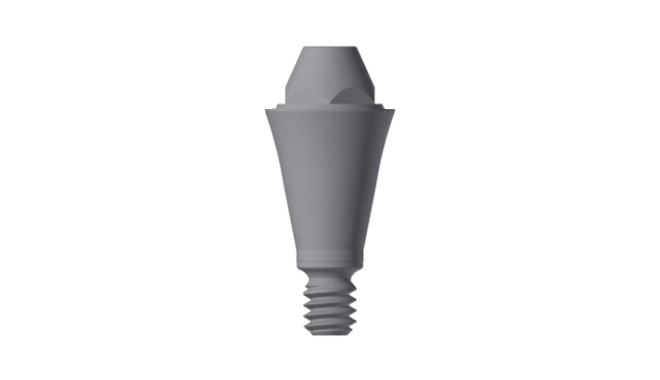

  Multi-Unit Abutment

  Used for making prostheses with multiple units

  Abutment Torque : Mini, Regular 30 N-cm

  Same platform as Multi-Angled Abutment

•

  Multi-Angled Abutment

  Used for making prostheses with multiple units

  Abutment Torque : Mini, Regular 30 N-cm

•

  Multi-Combination Cylinder

  Used for making combination prostheses with multi-unit abutments

  Abutment Torque : 21 N-cm

  Cylinder screw uses a 1.2 hex driver

  Multi-Angled abutment uses available (non-hex)

•

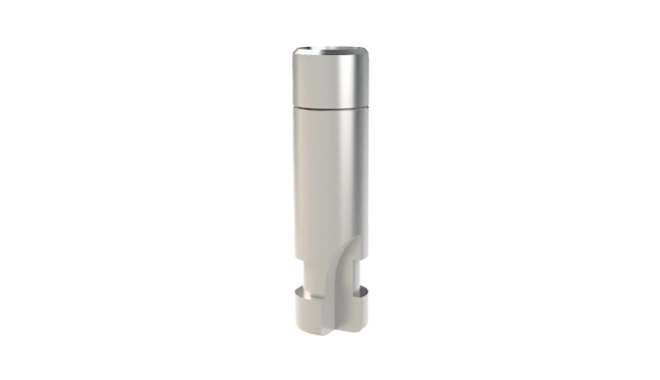

  Lab Analog

  Achieve fixture in oral cavity working model
